Ground Protection Mats
Durable and waterproof mats are an effective way of providing temporary access and roadways for heavy machinery on construction sites with fragile terrain.
- Easy to transport,install, and store
- Eco-friendly 100% recyclable High-Density Polyethylene
- Withstands up to 90 tons!
- Infused with rubber for grip & flex
- A lifespan of 10+ years!
Specification
Ground protection mats with pedestrian-friendly treads provide safe temporary walking paths for pedestrian surrounding redevelopment projects near residential or high pedestrian footfall areas as well as a clean and level ground/floor for temporary set-ups such as pop-up events or festivals. At the same time, these mats protect the lawn or turf underneat.
| No. | Size (mm) | Thickness with texture (mm) | Weight (kg) | Loading capacity (ton) | |||||
|---|---|---|---|---|---|---|---|---|---|
| Dimension | Thickness | Width | Length | Single-sided | Double-sided | Single-sided | Double-sided | ||
| 1 | 2400 x 1200 x 12.7 | 12.7 | 1200 | 2400 | 17.7 | 22.7 | 38.016 | 39.456 | 80 |
| 2 | 2440 x 1220 x 12.7 | 12.7 | 1220 | 2440 | 17.7 | 22.7 | 39.29376 | 40.78216 | 80 |
| 3 | 2000 x 1000 x 10 | 10 | 1000 | 2000 | 15 | 20 | 21 | 22 | 50 |
| 4 | 2900 x 1100 x 12.7 | 12.7 | 1100 | 2900 | 17.7 | 22.7 | 42.108 | 43.703 | 80 |
| 5 | 3000 x 1500 x 15 | 15 | 1500 | 3000 | 20 | 25 | 69.75 | 72 | 120 |
| 6 | 5900 x 2000 x 28 | 28 | 2000 | 5900 | 33 | 38 | 336.3 | 342.2 | 180 |
| 7 | 5800 x 2000 x 25 | 25 | 2000 | 5800 | 30 | 35 | 295.8 | 301.6 | 150 |
| 8 | 3000 x 2500 x 38 | 38 | 2500 | 3000 | 43 | 48 | 288.75 | 292.5 | 300 |
| 9 | 4500 x 2000 x 38 | 38 | 2000 | 4500 | 43 | 48 | 346.5 | 351 | 300 |
| 10 | 3000 x 2500 x 25 | 25 | 2500 | 3000 | 30 | 35 | 191.25 | 195 | 150 |
| 11 | 2000 x 2000 x 30 | 30 | 2000 | 2000 | 35 | 40 | 122 | 124 | 350 |
| 12 | 2000 x 1000 x 30 | 30 | 1000 | 2000 | 35 | 40 | 61 | 62 | 350 |
| 13 | 2000 x 2000 x 50 | 50 | 2000 | 2000 | 55 | 60 | 202 | 204 | 500 |
| 14 | 5000 x 2000 x 60 | 60 | 2000 | 5000 | 65 | 70 | 605 | 610 | 900 |
Product benefit
Rucced
withstands up to 90 tons!
Waterproof
won’t rot, crack, or peel
Eco-friendly
100% recyclable High-Density Polyethylene.
Lightweight
easy to transport,install, and store.
Pattern

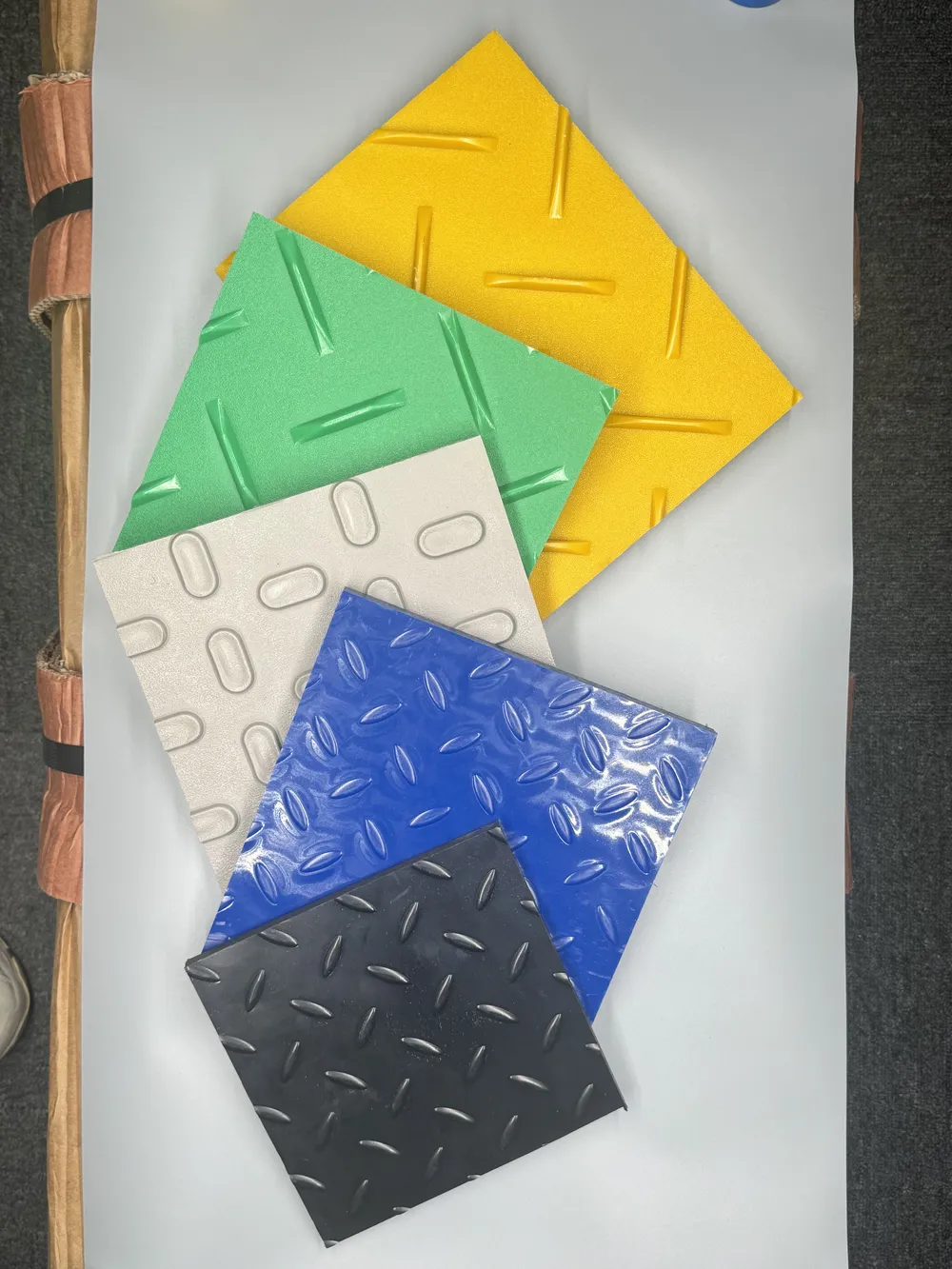

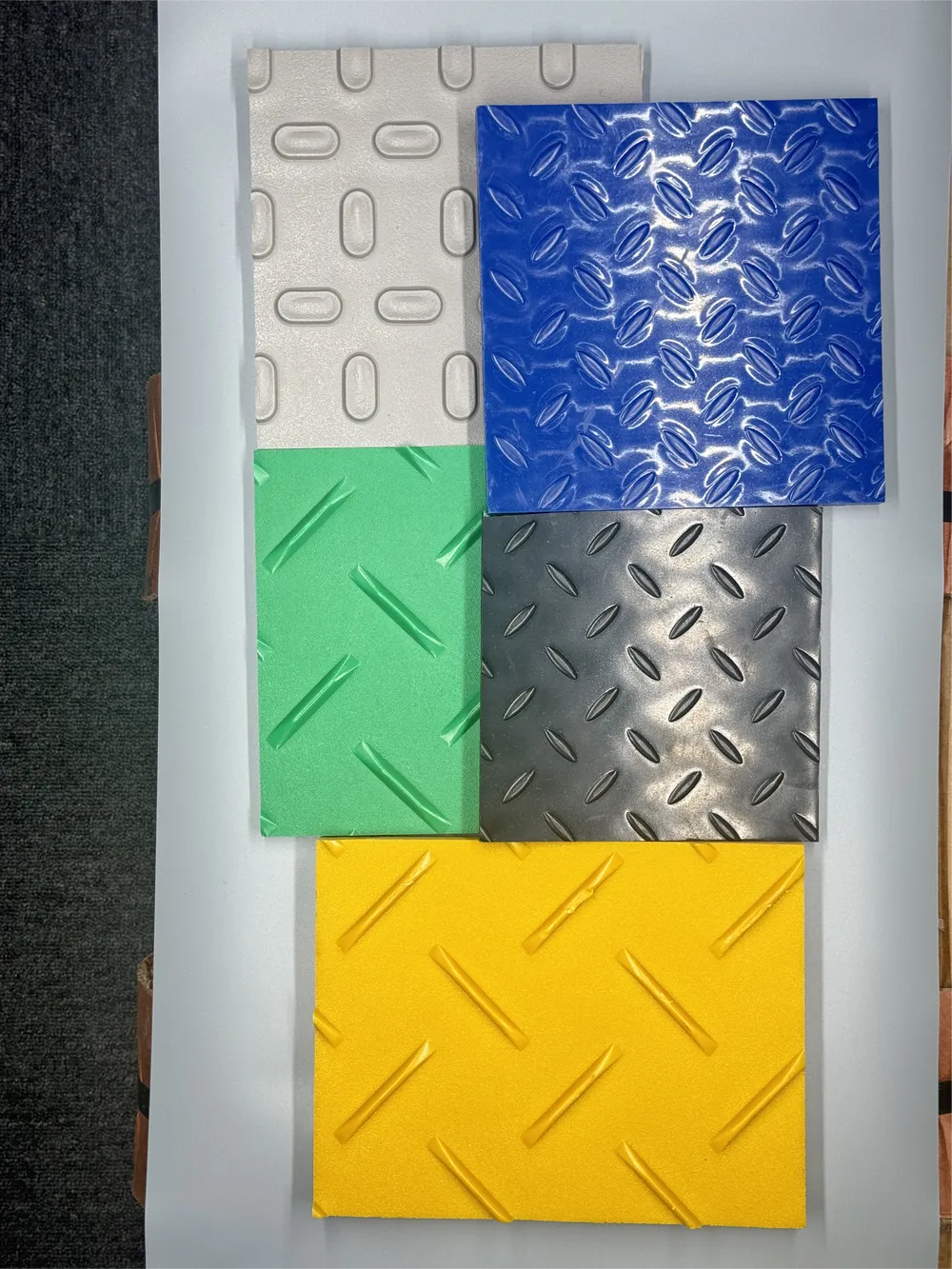

Our pattern include hexagonal, large-texture, four-claw, willow leaf, leather texture,smooth surface, etc. Different patterns serve different purposes. For example, the four-claw pattern is for beach use. We offer single-sided, both sides with same patterns or two sizes with different patterns. Custom designs are also available to match your specific application needs.

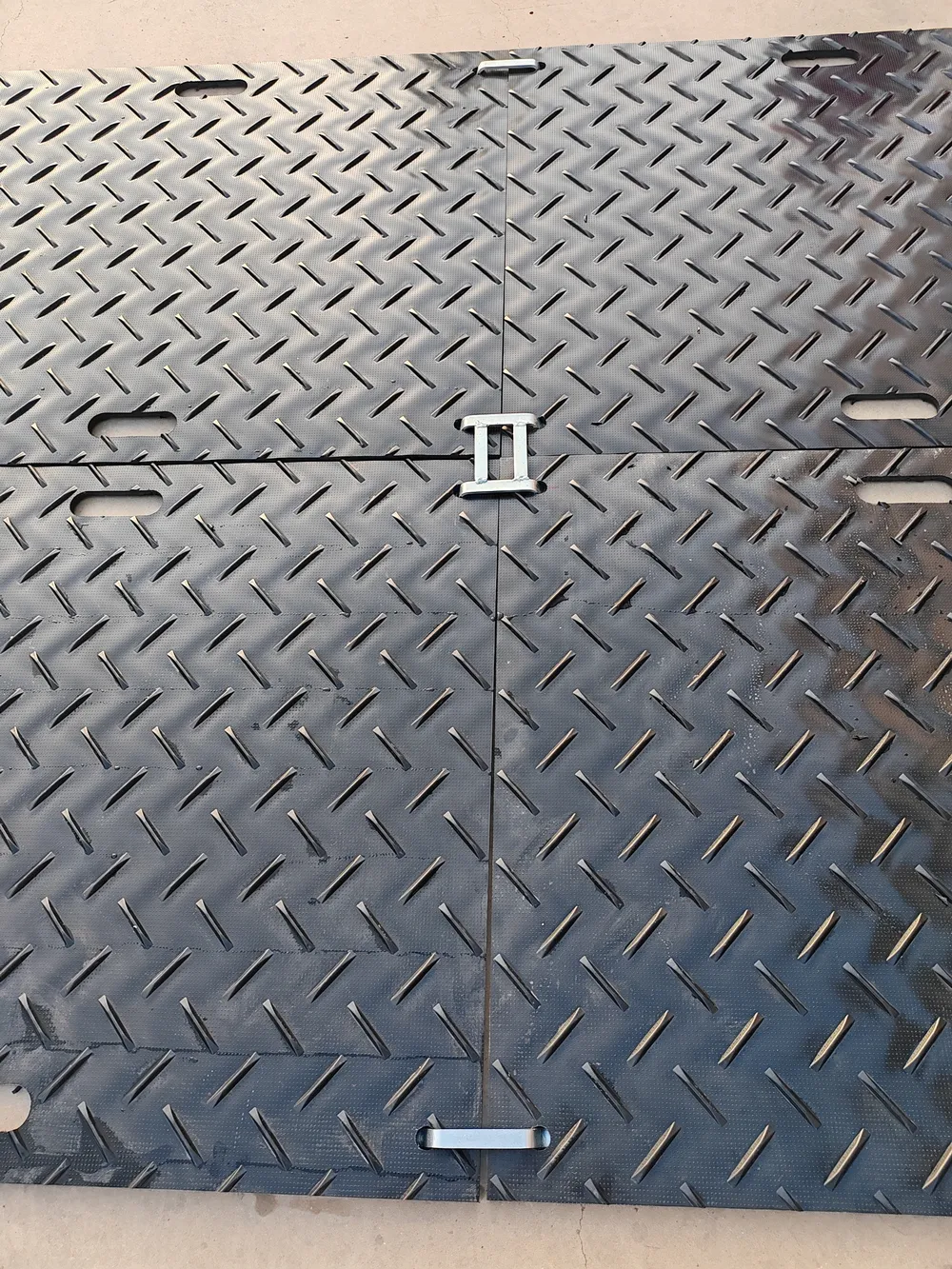

Connection way

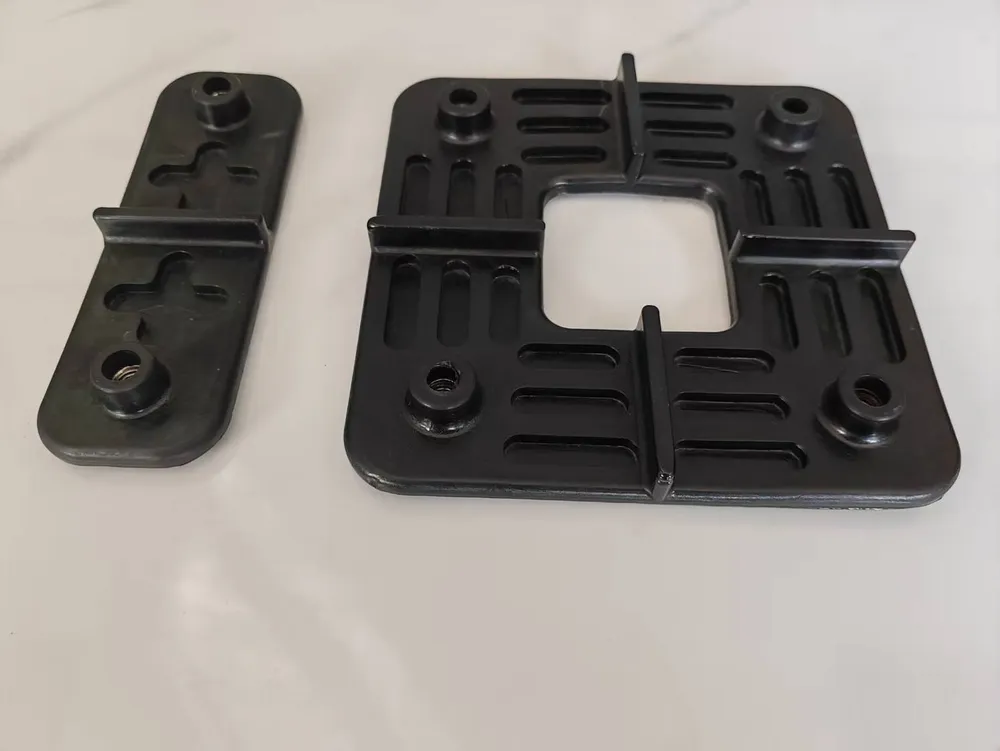

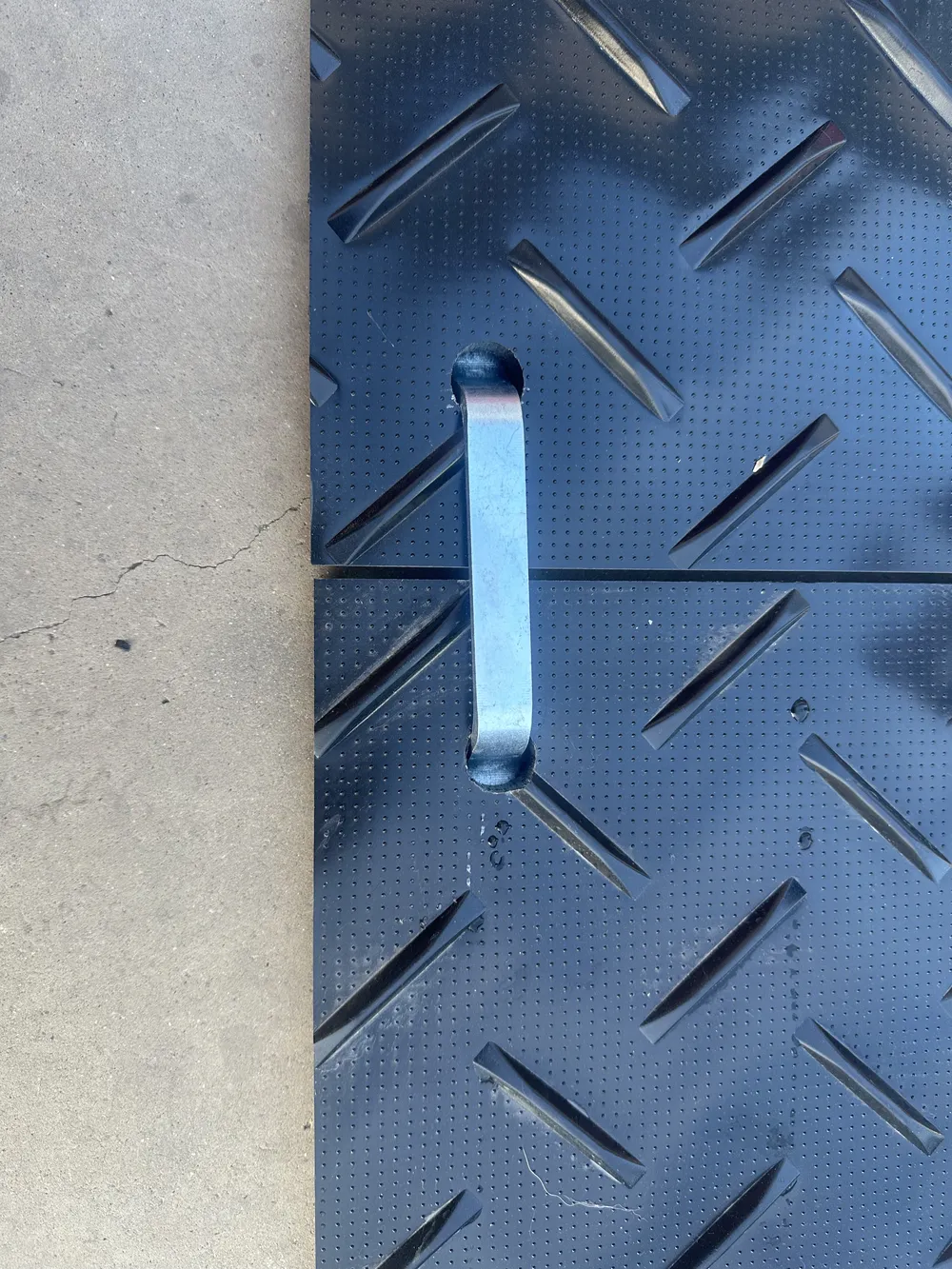

The material of connector: metal and plastic (polyurethane). Available in one-way and two-way types, the metal connectors are simpler to install and easier to disassemble.
Key Features

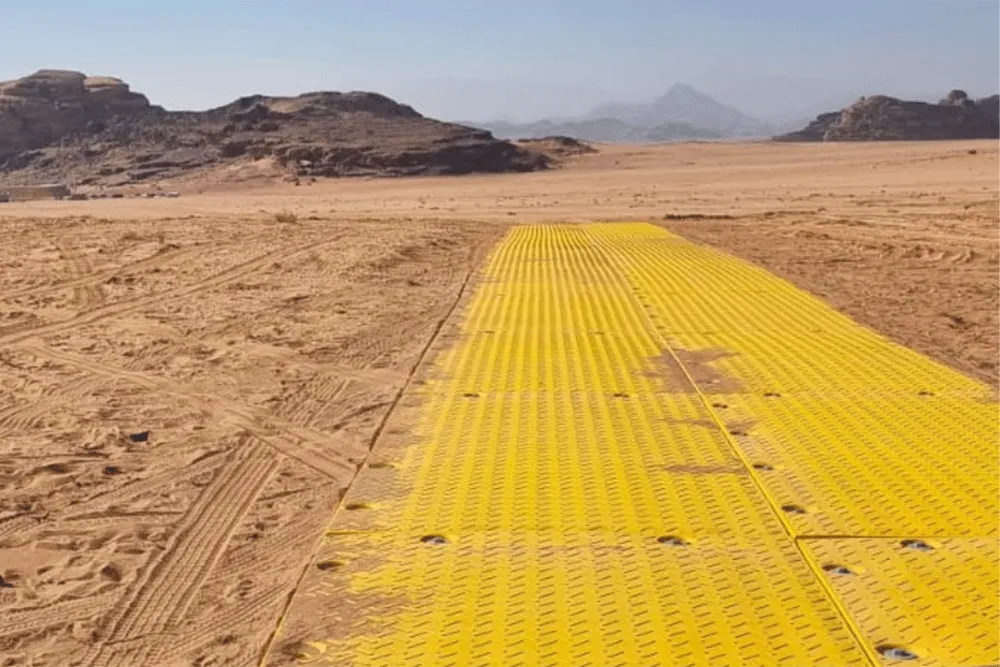

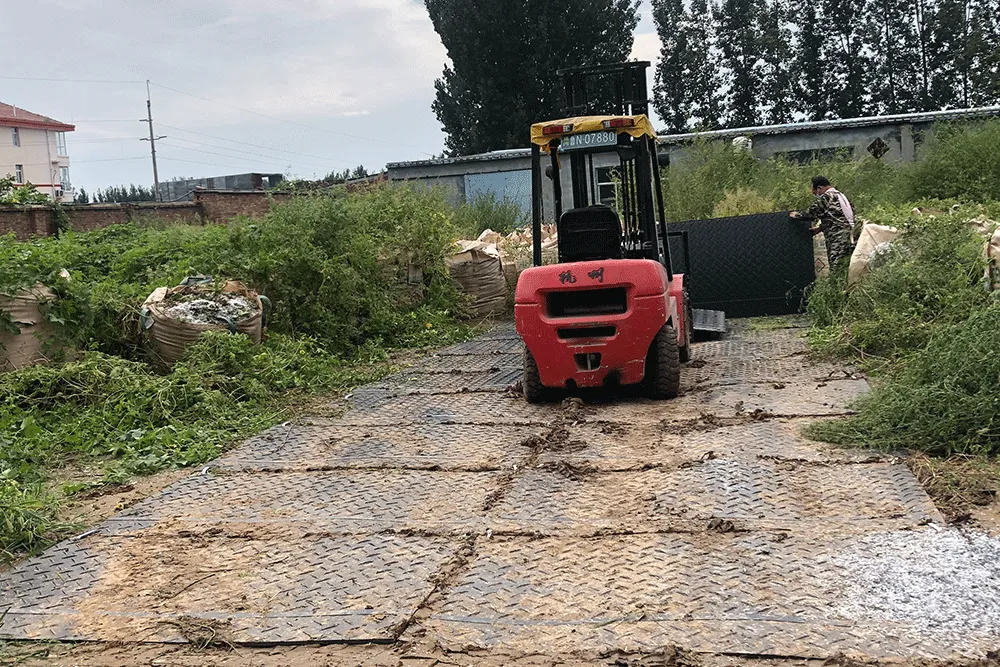

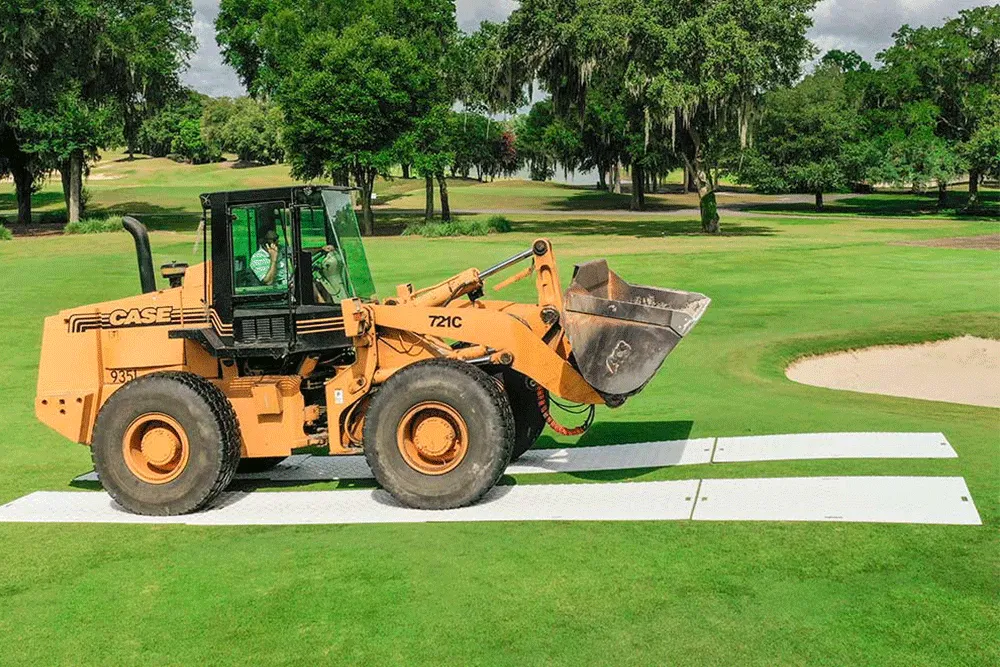

A ground protection mat is a lightweight, non-slip and flexible mat that is made from high density polyethylene (HDPE). These mats provide a reliable base for traction and safe passage way for vehicles and heavy equipment over unpaved surfaces, sandy, soft muddy or marshy grounds.
Up to 80 tons load capacity
subjected to ground conditions BKM mats are rated at 200 psi, but can safely support loads up to 80 tons over grassy fields, sand and aggregate surfaces in a variety of applications.
Lightweight

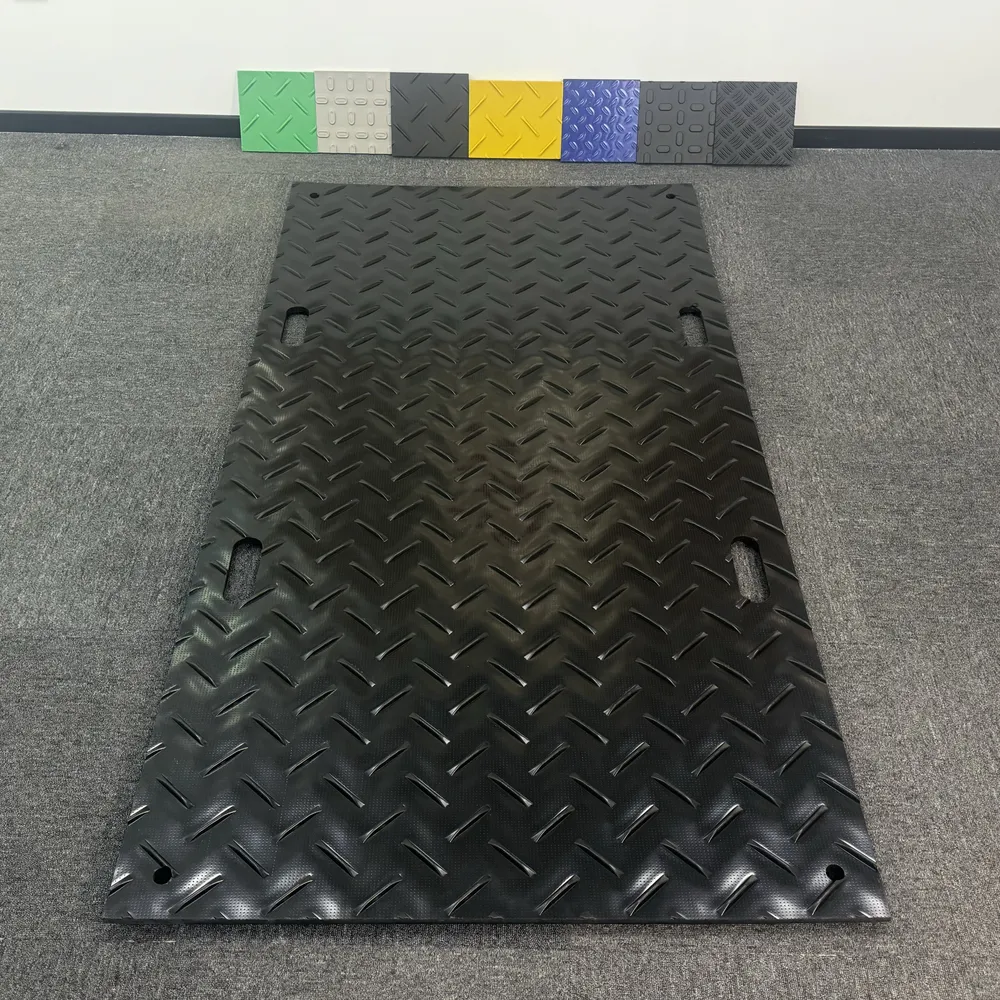

can be moved around by 2 staff members Ground protection mats are laid directly onto the ground. The built-in cut-out handles make them simple to carry and place and when the job is done, they are effortlessly stored in stillages or on pallets.
Durable
Provide for reliable traction and grip in any weather conditions
Flexible construction allows for slopes and inclines conformity
Unlikely to warp, splinter or break under different weather conditions
Our mats are designed for longevity with a typical lifespan of up to 10 years or more, depending on frequency and type of use.
Easy to install
Our mats are designed to connect together quickly and simply. Depending on the product, connection methods include shoulder bolts, interlocking flanges or joining clips.
Environmentally friendly
Ground protection mats prevent damage to the natural environment and get your project done faster without negative surface impact. they are often made from recycled materials and are 100% recyclable at the end of their long lifespan, making them a sustainable choice.
easy to maintain
You can easily clean your mats with just a hose, or a pressure cleaner for more caked on mud and dirt.
Frequnetly Asked Questions
What is the load capacity of your ground protection mats?
A: Our mats can handle loads up to 80 tons, depending on thickness and ground conditions. They are designed for heavy trucks, cranes, and other construction equipment.
Can I order custom sizes or colors?
A: Yes. While our standard size is 1220 × 2440 mm (4 × 8 ft), we can produce custom sizes, thicknesses, and even branding or colors to meet specific project needs.
How do I install the mats?
A: Each mat has handles or connection holes for easy handling. Two people can carry and position a mat. Mats are connected with steel or HDPE connectors to form a stable surface.
Are the mats reusable?
A: Yes. Made from durable HDPE, our mats can be reused hundreds of times. With proper care, they can last for years, making them a cost-effective solution.
How do you ship the mats?
A: Mats are stacked and packed on pallets or in bulk containers. We can arrange sea freight, air freight, or land transport depending on your destination.
What is the minimum order quantity (MOQ)?
A: Our MOQ is usually 50 pieces, but we can discuss smaller trial orders for new customers.
How long is delivery time?
A: If in stock, we can ship within 7 days. For custom orders, production time is usually 15–25 days.
What payment methods do you accept?
We accept T/T, L/C, and other international payment methods. A deposit is required before production.
